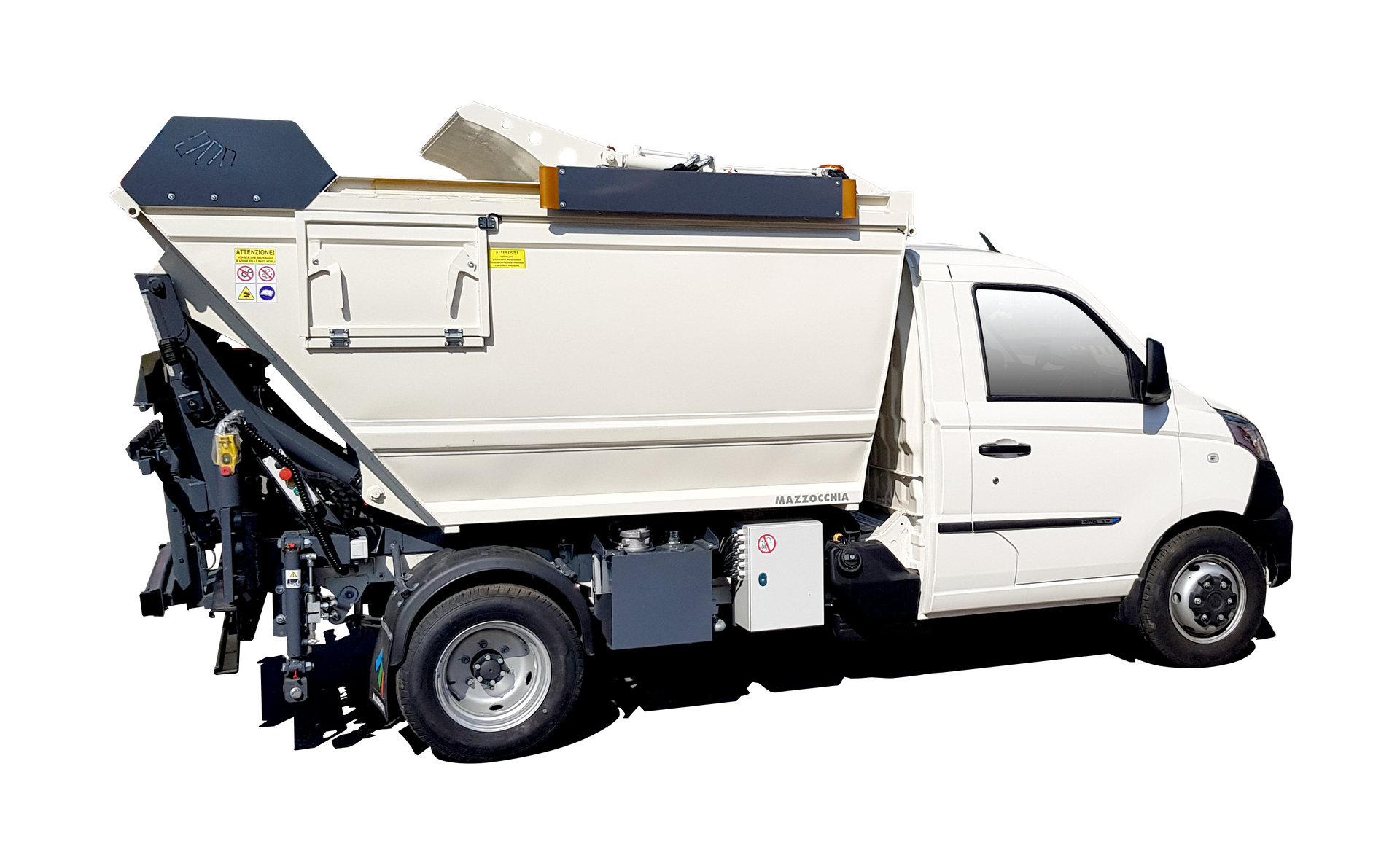

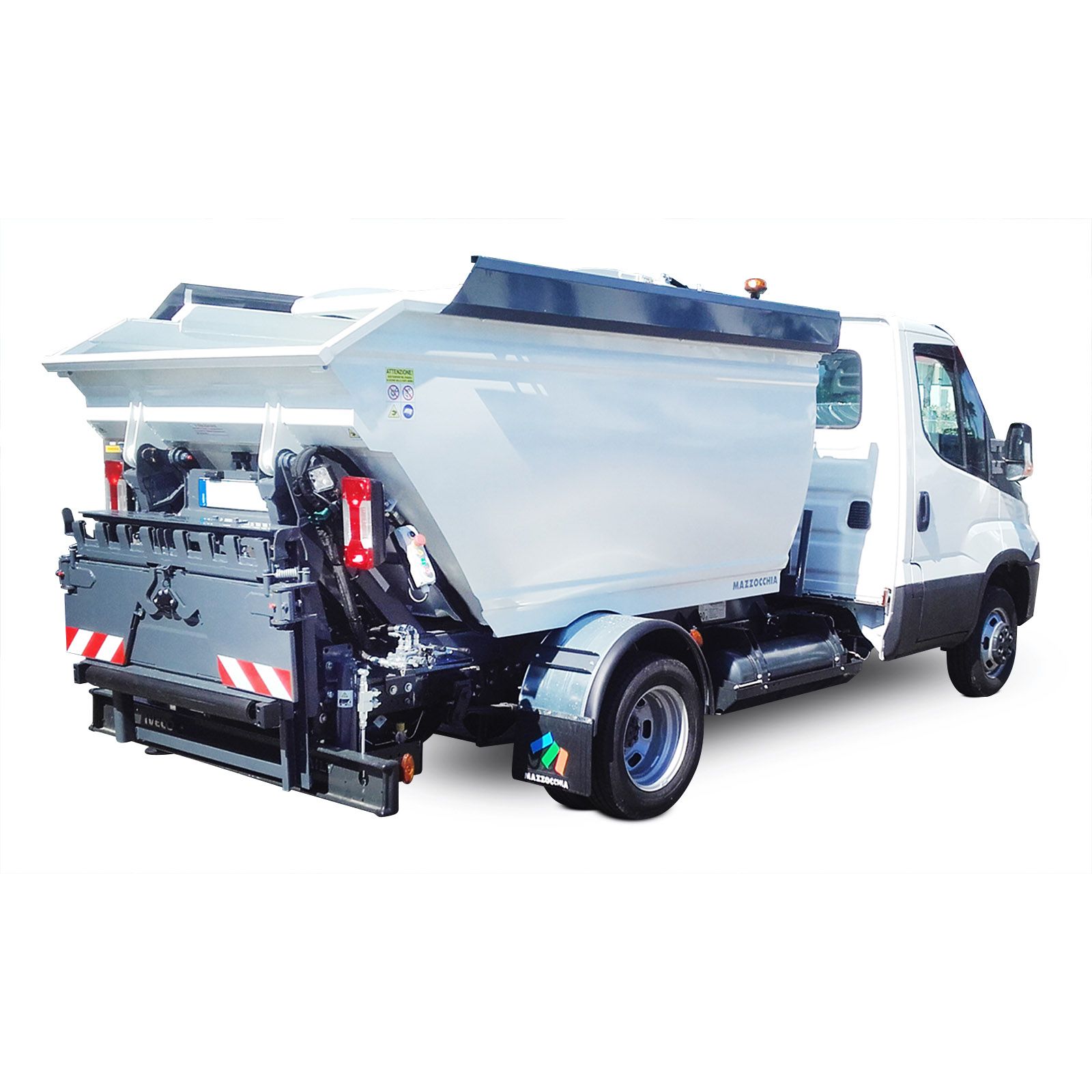

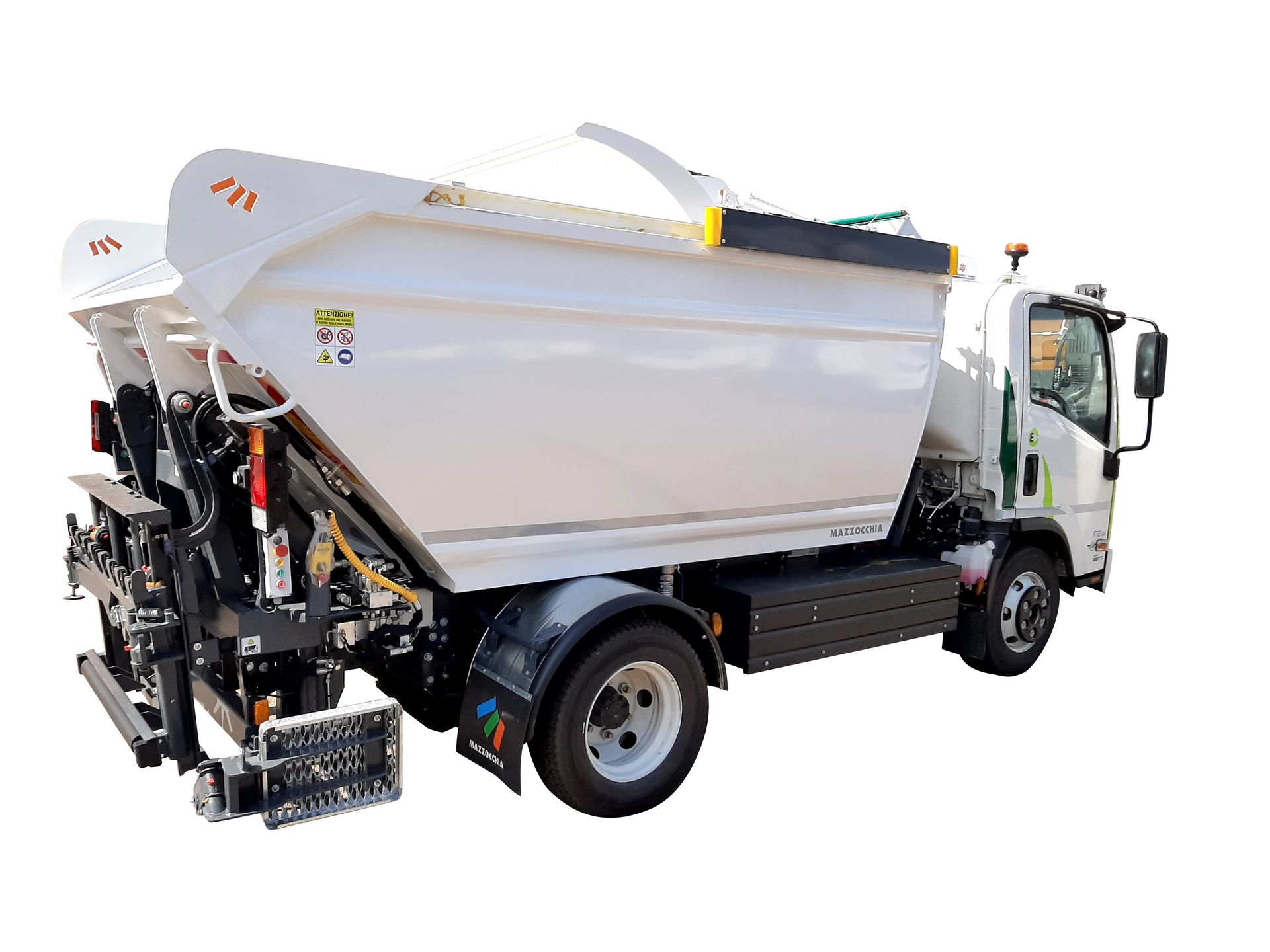

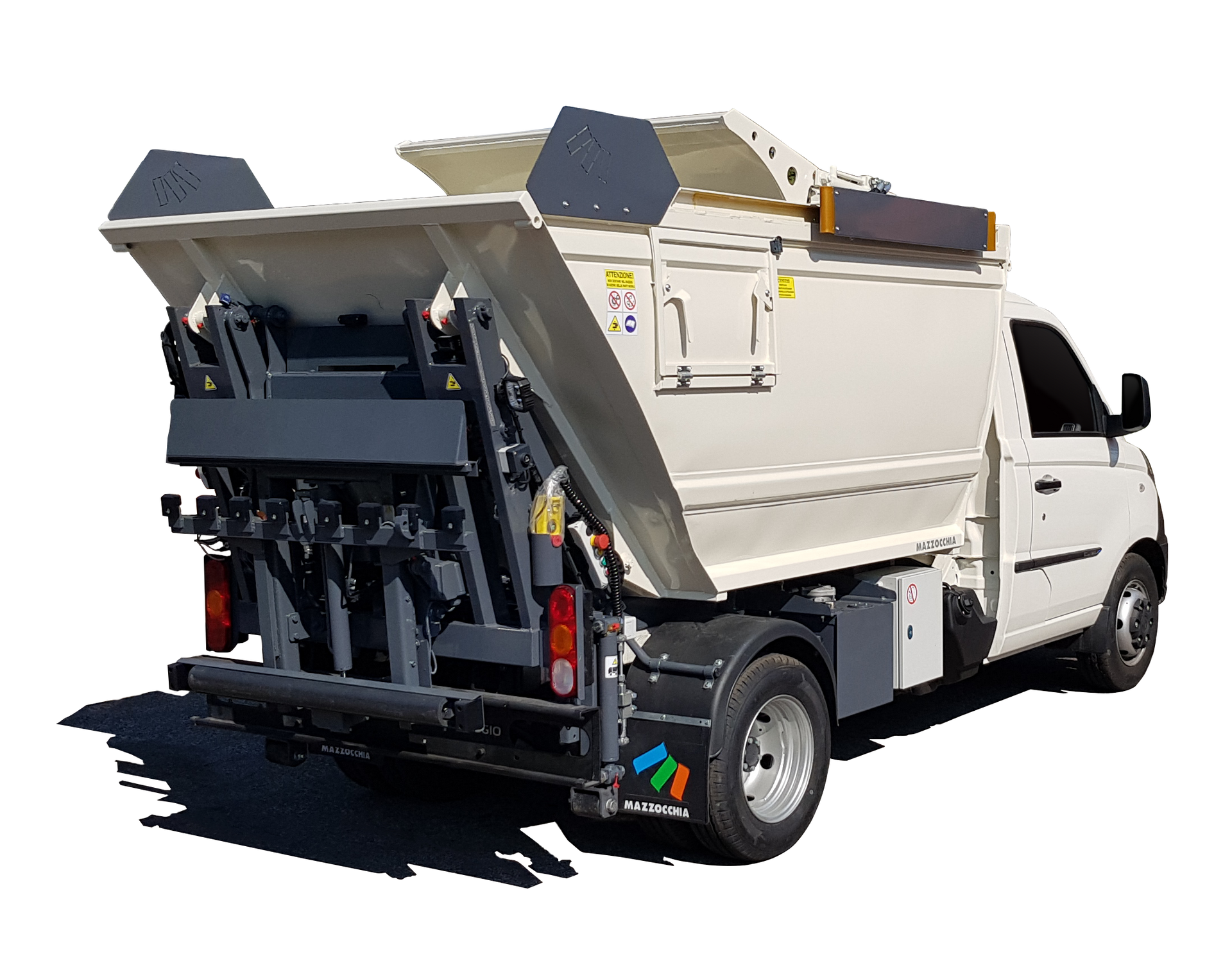

MINISTAR
SINGLE-BLADE ARTICULATED TIPPING COMPACTOR
Hydraulically operated tipping compactor made of fully welded and watertight steel. Can be transferred to larger vehicles. Bin lifts and dumpster lifts with standardized attachments.
Compaction system with articulated blade, operated by four double-acting hydraulic cylinders, suitable for both dry waste such as paper, cardboard and plastic, as well as organic waste.
Automatic compaction cycle and cycle inversion during unloading, to facilitate the removal of bulky waste.
Waste unloading via hydraulic tipping with double-acting cylinder(s); unloading threshold suitable for transfer to mother vehicles.
Automatic stabilization system during unloading
Hydraulic operating system with power take-off on the gearbox and hydraulic pump. Controls and safety devices compliant with the Machinery Directive and UNI EN 1501.
MAIN FEATURES
Body volume
Yes 4 to 8.5 m³
Typology
tipping compactor
Compaction system
Articulated single-blade
Exhaust system
For overturning
Operating system
Hydraulic
THE INFORMATION SHOWN IS INDICATIVE AND NON-BINDING. WE RESERVE THE RIGHT TO MAKE CHANGES AT ANY TIME WITHOUT NOTICE.
| DESCRIPTION | U.M. | MINISTARB 4 / MINISTARB 5 / MINISTARB 7 / MINISTARB 8.5 |
|---|---|---|
| CASE VOLUME | m³ | 4 / 5 / 7 / 8.5 |
| MTT CAR CHASSIS (minimum) | TON | 2.8 / 3.5 / 5 / 7.5 |
| MINIMUM WHEELBASE (short cab) | MM | 3000 / 2500 / 2900 / 2900 |
| AVERAGE COMPACTION RATIO | ADJUSTABLE | 2.5:1 / 2.5:1 / 3.5:1 / 3.5:1 |
Standard equipment
- Container lifts with unified connections
- Transfer to larger compactors
- Stabilizers synchronized with the rollover
- Rear camera
- Rotating lighthouse
- Work lighthouse
Optional
- Bag turner device integrated with the container turner
- Manual disinfection system
- Waste weighing system
- Container identification system
- Data transmission and fleet management system
- Scheduled maintenance and “full service” programs
- Customizations and devices on specific request
