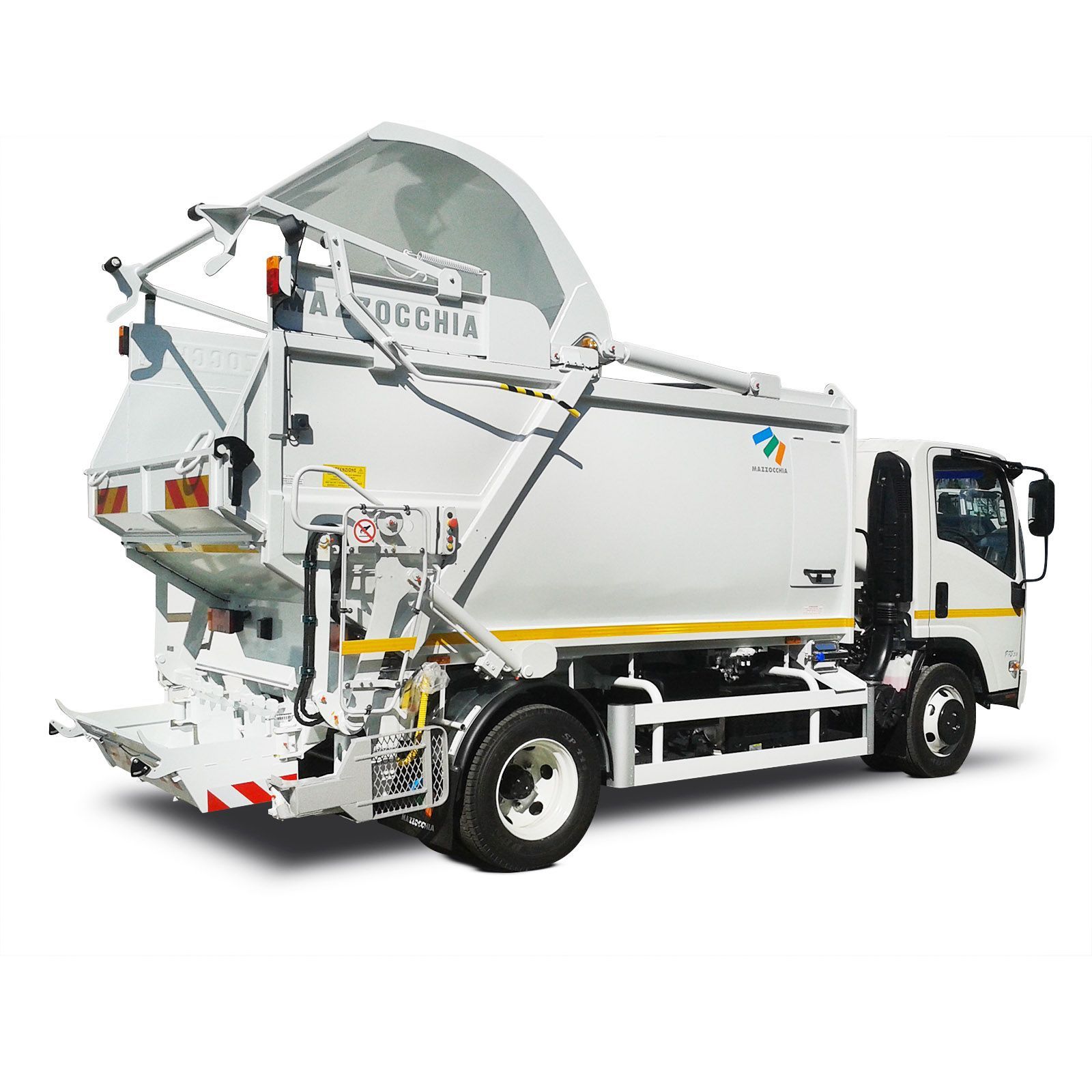

JOLLY 1B
SINGLE-BLADE MONOCOQUE MINI-COMPACTOR WITH EJECTION BLADE
Rear-loading, single-body mini-compactor; ideal for the collection of organic waste, paper and cardboard, for door-to-door collection and as a satellite vehicle
Compaction system with single blade pivoted above the body, operated by two double-acting hydraulic cylinders
Discontinuous and/or semi-automatic compaction cycle
Waste discharge via an internal bulkhead operated by a double-acting multi-thread cylinder; discharge threshold suitable for transfer to mother vehicles
Hydraulic operating system with gearbox power take-off and hydraulic pump
Sewage collection tank on the body with front containment bulkhead and drain valve, opening rear side panel
Controls and safety devices compliant with the Machinery Directive and UNI EN 1501
MAIN FEATURES
Body volume
7 m³
Typology
rear compactor with monocoque body
Compaction system
Single Blade
Exhaust system
Ejection blade
Operating system
Hydraulic
THE INFORMATION SHOWN IS INDICATIVE AND NON-BINDING. WE RESERVE THE RIGHT TO MAKE CHANGES AT ANY TIME WITHOUT NOTICE.
| DESCRIPTION | U.M. | JOLLY 1B |
|---|---|---|
| CASE VOLUME | m³ | 7 |
| MTT CAR CHASSIS (minimum) | TON | 6 |
| MINIMUM WHEELBASE (short cab) | MM | 3.100 |
| AVERAGE COMPACTION RATIO | ADJUSTABLE | 3:1 |
Standard equipment
- Container lifts with unified connections
- Rear footrests for standing operators
- Transfer to larger compactors
- Rear camera
- Touch screen control panel in the cabin
- Rotating lighthouse
- Work lighthouse
- Sewage collection tank
- Shovel and broom holder
Optional
- Bag turner device integrated with the container turner
- Bin disinfection system
- Greasing system
- Waste weighing system
- Container identification system
- Data transmission and fleet management system
- Scheduled maintenance and “full service” programs
- Customizations and devices on specific request
