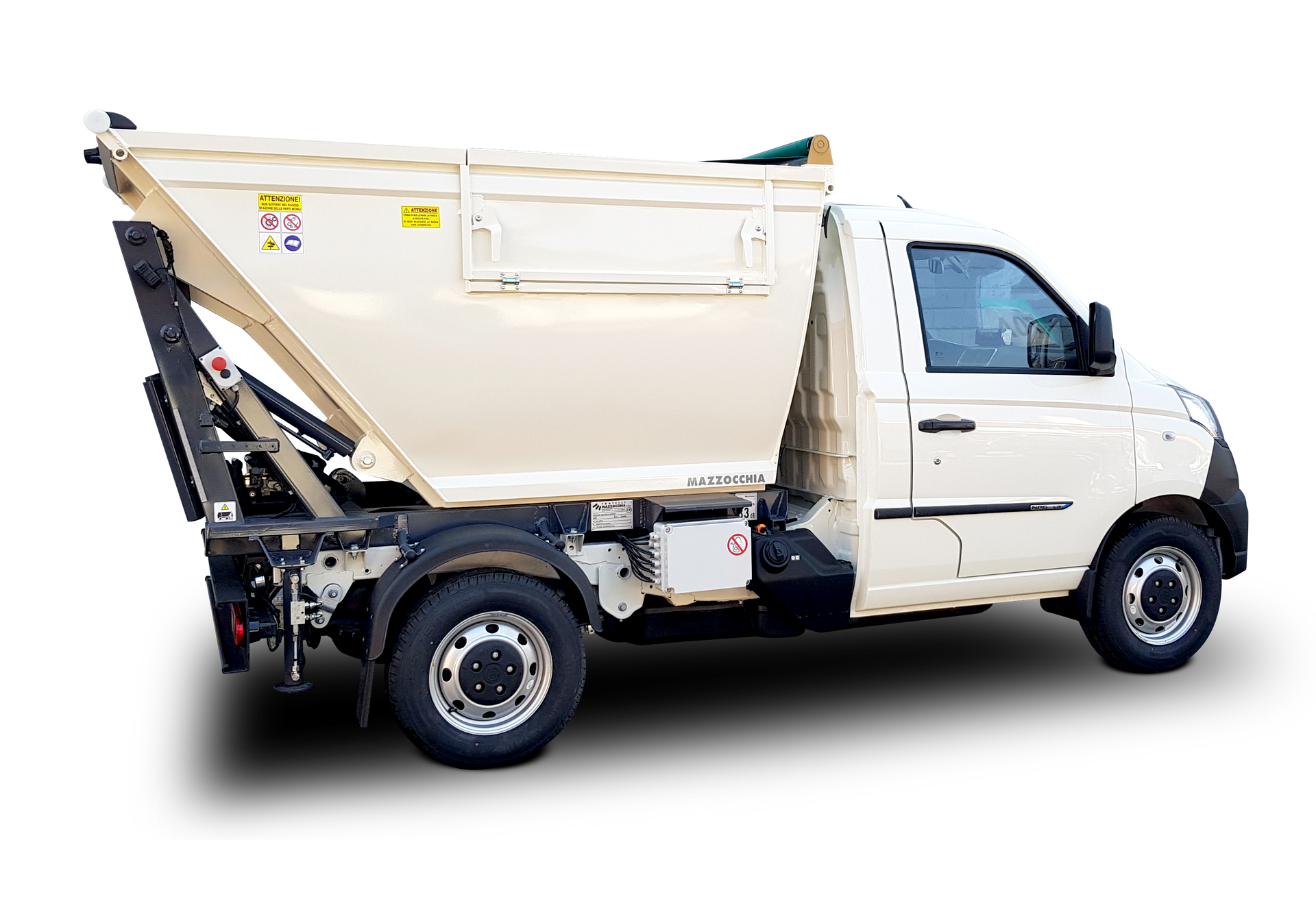

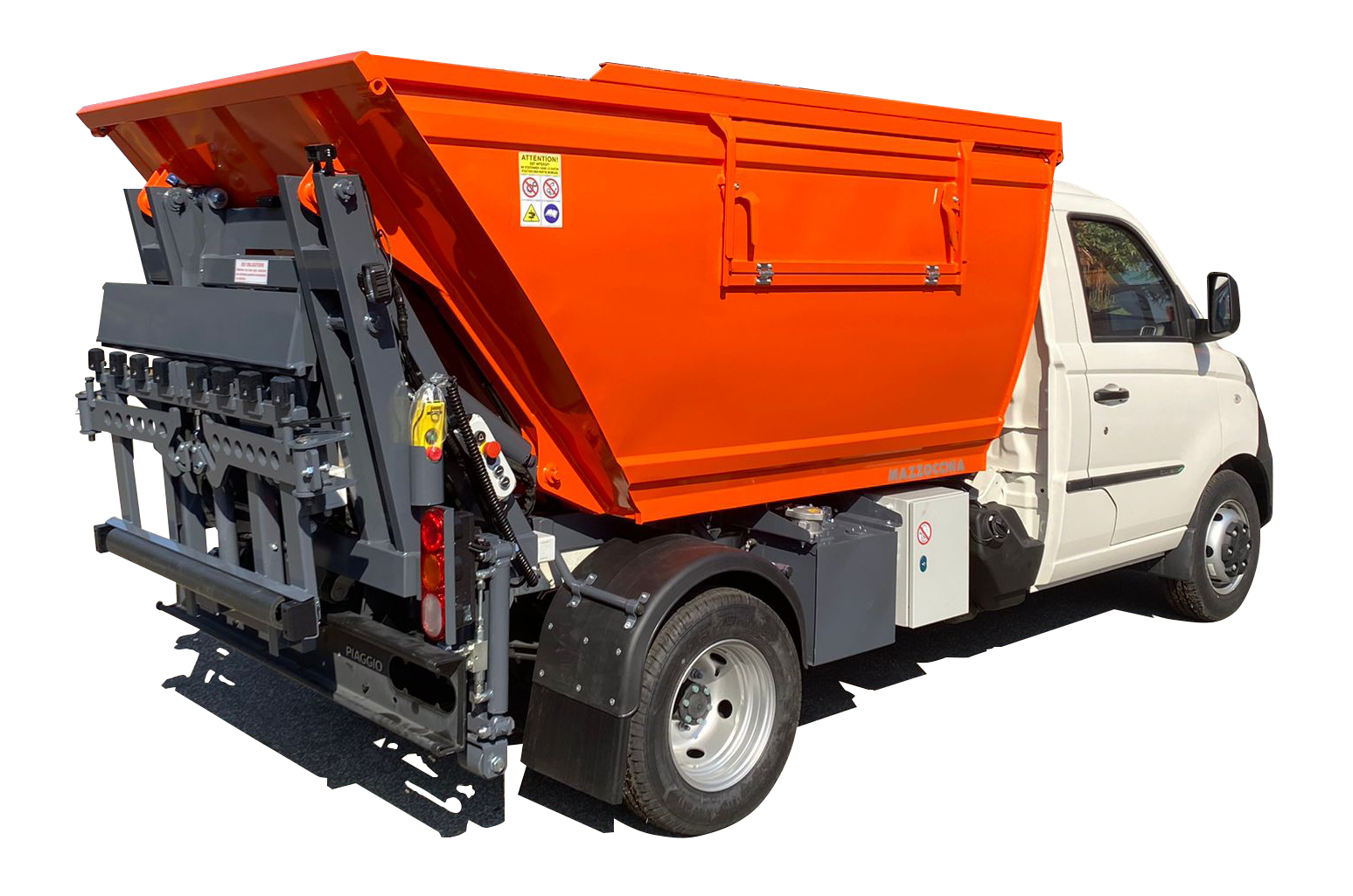

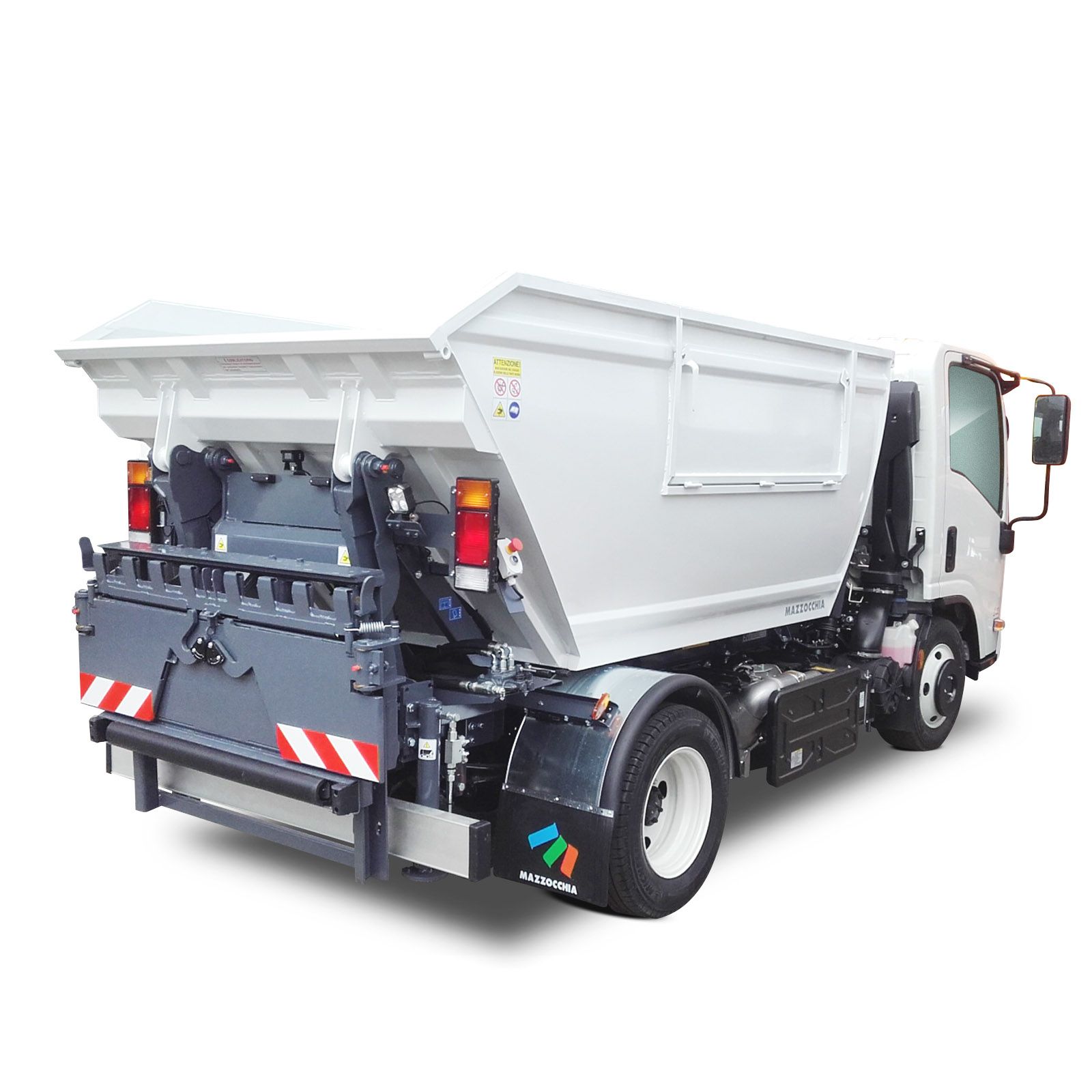

JOLLY 11B / 12B

TILTING EQUIPMENT

Tilting equipment made of high resistant steel, completely welded, hydraulically
operated. Coupling with bigger compactors. Bin lift with standard connections.

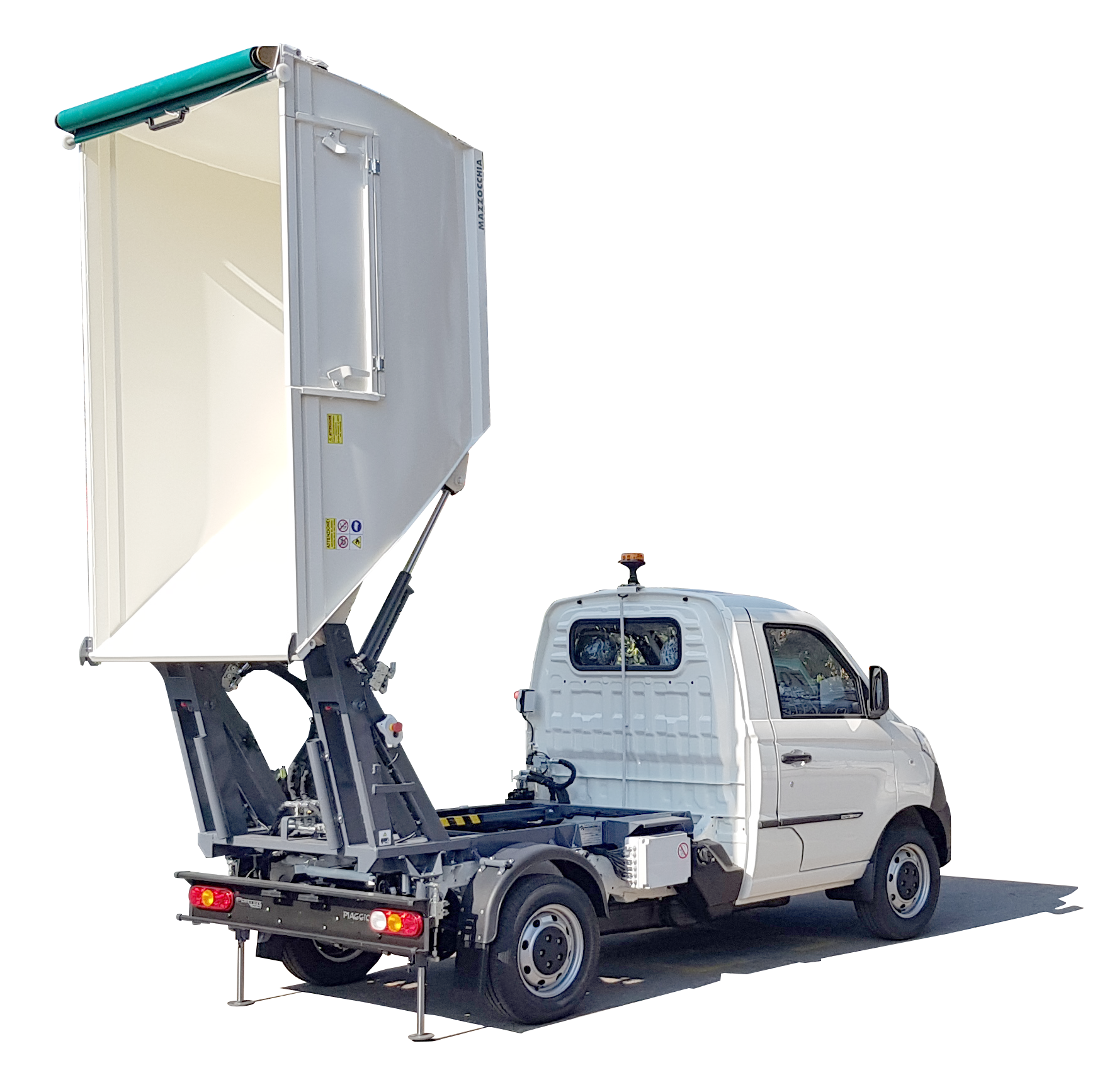

Tilting body moved by an hydraulic cylinder with lock valve.
Rear stabilizers;
Hydraulic system moved by gear PTO and pump.
Safety controls and devices are pursuant to Machinery Directive and to UNI EN 1501.

MAIN FEATURES

Body Volume

From 2.6 to 8.5 m³


Type

Tilting equipment


Discharge System

By tipping


Working System

Hydraulic


THE PROVIDED DATA IS INDICATIVE AND NOT BINDING. WE RESERVE THE RIGHT TO MAKE ANY MODIFICATIONS AT ANY TIME WITHOUT PRIOR NOTICE.

DESCRIPTION U.M. JOLLY 12B JOLLY 11B4 JOLLY 11B5 JOLLY 11B7 JOLLY 11B8.5
BODY VOLUME m³ 2.6 4 5 7 8.5
CHASSIS GVW TON 2.1 2.4 3.5 5 7
MINIMUM WHEELBASE (day cab) MM 2650 3070 2500 2900 2900

Standard Outfits

  • Bin lift with standard connections
  • Coupling with bigger compactors
  • Rear stabilizers
  • Rotolamp

Optionals

  • Bags loader (integrated with bin lift)
  • Container disinfecting system
  • Weighing system
  • Containers Identification System
  • Fleet managment
  • Maintenance Service
  • Customizations on a specific request
