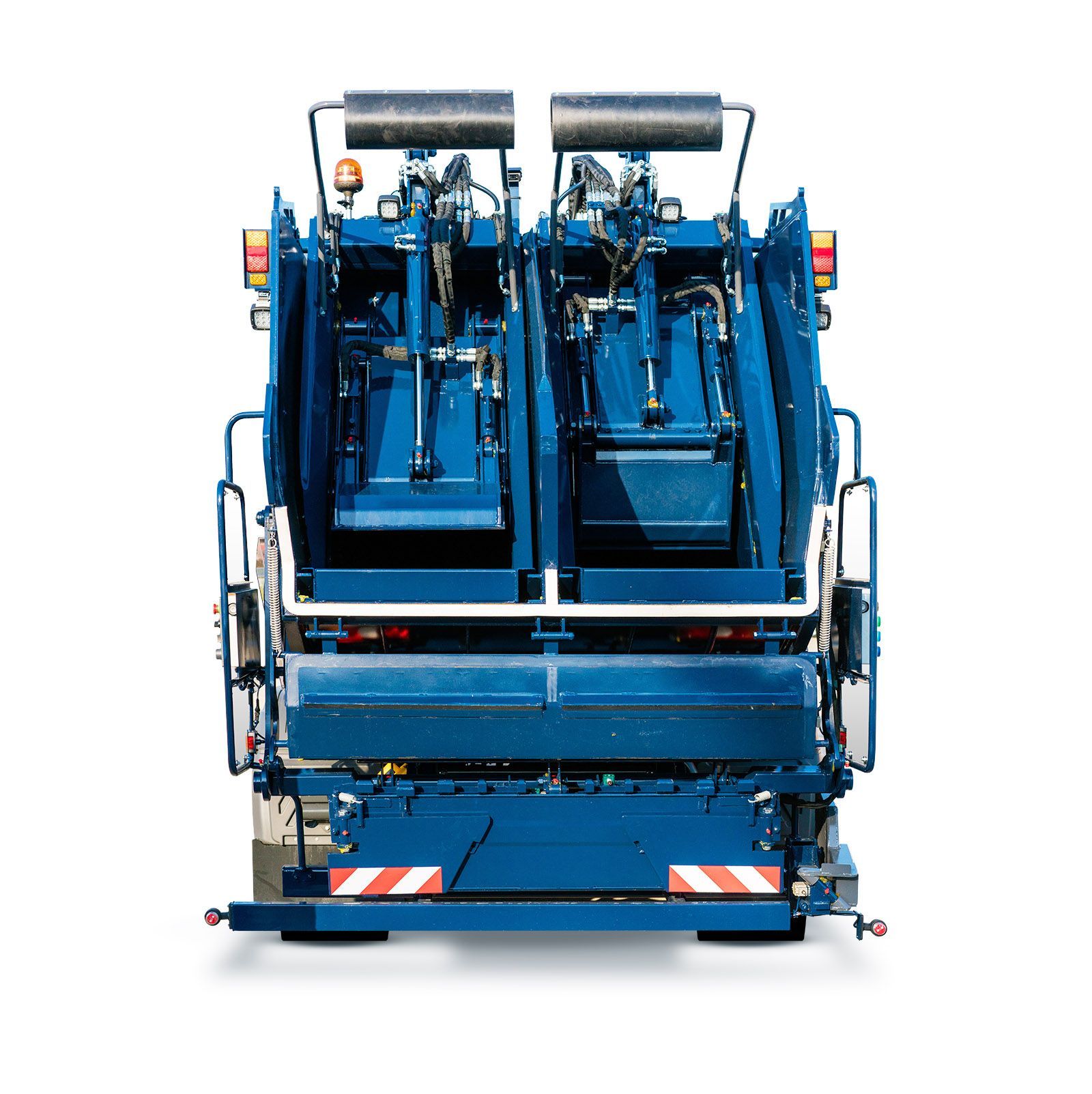

MINIMACB DUAL
REAR COMPACTOR WITH MONOCOQUE BODY AND INTEGRATED HOPPER
The MINIMACB DUAL is a double chamber compactor, designed with two compaction and unloading systems, completely independent of each other.
The container, equipped with a separating partition, allows the collection of two different types of waste
The “Monococca” body solution makes the MIMINACB DUAL particularly suitable for the collection of wet waste
The front bulkhead and the shape of the rear slide form two completely watertight tanks
The particular speed of the compaction system, together with the counter-pressure system of the expulsion bulkheads, guarantee excellent working performance even for waste such as: paper, cardboard, plastic, etc.
Possibility of unloading at height with or without lifting the container
Waste discharge via internal bulkhead; hydraulically controlled, adjustable back pressure of the expulsion bulkhead, with the possibility of varying the compaction ratio
Hydraulic operating system with advanced electronic management, which guarantees all the functionality and safety of the equipment according to the highest standards, with data communication interface system.
Container lifts and rear footrests manufactured in accordance with the relevant European standards and standardised with the entire Mazzocchia rear range.
Backlit touch-screen control panel in the cabin with dedicated graphics to effectively communicate the various work situations
Controls and safety devices compliant with the Machinery Directive and UNI EN 1501
MAIN FEATURES
Body volume
From 8 to 12 m³ - Possibility of subdivision: symmetrical or 2/3 1/3
Typology
rear compactor with monocoque body and integrated hopper
Compaction system
Articulated single-blade
Exhaust system
Ejection blade
Operating system
Hydraulic
THE INFORMATION SHOWN IS INDICATIVE AND NON-BINDING. WE RESERVE THE RIGHT TO MAKE CHANGES AT ANY TIME WITHOUT NOTICE.
| DESCRIPTION | U.M. | MINIMACB DUAL |
|---|---|---|
| CASE VOLUME | m³ | 8-12 |
| MTT CAR CHASSIS (minimum) | TON | 12-15 |
| MINIMUM WHEELBASE (short cab) | MM | 3.100 |
| AVERAGE COMPACTION RATIO | ADJUSTABLE | 5:1 |
Standard equipment
- Container lifts with unified connections only 120/360 comb connection in the symmetrical version, up to 1100 litres DIN connection in the 2/3 1/3 version
- Rear footrests for standing operators
- Transfer to larger compactors
- Adjustable compaction ratio
- Rear camera
- Touch screen control panel in the cabin
- Rotating beacons
- Work lighthouse
- Sewage collection tank
- Shovel and broom holder
Optional
- Bag turner device integrated with the container turner only wide hopper in 2/3 ⅓ version
- Bin disinfection system
- Manual container washing system with hose reel and machine gun
- Greasing system
- Waste weighing system
- Container identification system
- Data transmission and fleet management system
- Perimeter video system
- Scheduled maintenance and “full service” programs
- Customizations and devices on specific request
